Build a design feedback app using Vue.js

Introduction

Companies like Invision have built applications that designers use to get feedback from other people. A designer can just load the Invision application, upload their designs and send the link to the people that will leave feedback, and then they can leave their feedback on different parts of the design. This is good for the designer because they can see this feedback and act on them.

In this article, we are going to create a design feedback application. This will allow you to upload images, then send the link to someone else to leave feedback on your design that you can see in realtime.

Here is a screen recording of what our application will be able to do once we are done building it:

design-feedback-vuejs-demo

Requirements we will need to build our application

Before we get started we need to have a few things in place first. Some of the requirements are as follows:

  • Knowledge of PHP & the Laravel framework.
  • Knowledge of JavaScript (ES6).
  • Knowledge of Vue.js.
  • PHP 7.0+ installed locally on your machine.
  • Laravel CLI installed locally.
  • Composer installed locally.
  • NPM and Node.js installed locally.
  • A Pusher application. Create one on pusher.com.

Once you have verified you have the above requirements we can start creating our application.

Setting up our prototype feedback application

Let us get started with setting up our application. Create a new Laravel application using the command below:

    $ laravel new your_application_name

When the installation is complete, cd to the application directory. Open the .env file and let us make a couple of changes in the file.

Setting up our database and migrations

The first thing to do is set up our database and create its migrations. Let us start by setting up the database. Replace the configuration items below:

1DB_CONNECTION=mysql
2    DB_HOST=127.0.0.1
3    DB_PORT=3306
4    DB_DATABASE=homestead
5    DB_USERNAME=homestead
6    DB_PASSWORD=secret

with:

    DB_CONNECTION=sqlite

This will now make the application use SQLite as the database choice. In your terminal, run the command below to create a new SQLite database:

    $ touch database/database.sqlite

Now let us create some migrations which will create the required tables to the database. In your terminal, run the following command to create the migrations we will need:

1$ php artisan make:model Photo --migration --controller
2    $ php artisan make:model PhotoComment --migration

The above command will create a model and then the --migration and --controller flags will instruct it to create a migration and a controller alongside the model.

For now, we are interested in the Model and the migration. Open the two migration files created in the ./database/migrations directory. Let us first edit the CreatePhotosTable class. Replace the content of the up method with the following below:

1public function up()
2    {
3        Schema::create('photos', function (Blueprint $table) {
4            $table->increments('id');
5            $table->string('url')->unique();
6            $table->string('image')->unique();
7            $table->timestamps();
8        });
9    }

This will create the photos table when the migrations are run using the artisan command. It will also create new columns inside the table as specified above.

Open the second migration class, CreatePhotoCommentsTable, and replace the up method with the contents below:

1public function up()
2    {
3        Schema::create('photo_comments', function (Blueprint $table) {
4            $table->increments('id');
5            $table->unsignedInteger('photo_id');
6            $table->text('comment');
7            $table->integer('top')->default(0);
8            $table->integer('left')->default(0);
9            $table->timestamps();
10
11            $table->foreign('photo_id')->references('id')->on('photos');
12        });
13    }

This will create the table photo_comments when the migration is run and also will create a foreign key to the photos table.

Now go to your terminal and run the command below to run the migrations:

    $ php artisan migrate

This should now create the database tables.

Setting up the models

Now that we have run our migrations, we need to make some changes to our model file so that it can work better with the table.

Open the Photo model and replace the contents with the following:

1<?php
2    namespace App;
3
4    use Illuminate\Database\Eloquent\Model;
5
6    class Photo extends Model
7    {
8        protected $with = ['comments'];
9
10        protected $fillable = ['url', 'image'];
11
12        public function comments()
13        {
14            return $this->hasMany(PhotoComment::class);
15        }
16    }

In the above, we have added the fillable property which stops us from having mass assignment exceptions when trying to update those columns using Photo::create. We also set the with property which just eager loads the comments relationship.

We have defined an Eloquent relationship comments that just says the Photo has many PhotoComments.

Open the PhotoComment model and replace the contents with the following:

1<?php
2    namespace App;
3
4    use Illuminate\Database\Eloquent\Model;
5
6    class PhotoComment extends Model
7    {
8        protected $fillable = ['photo_id', 'comment', 'top', 'left'];
9
10        protected $appends = ['position'];
11
12        public function getPositionAttribute()
13        {
14            return [
15                'top' => $this->attributes['top'],
16                'left' => $this->attributes['left']
17            ];
18        }
19    }

Just like the Photo model, we have defined the fillable property. We also use Eloquent accessors to configure a new property called position which is then appended because we specified that in the appends property.

Setting up the frontend for our application

The next thing we want to do is set up the frontend of our application. Let us start by installing a few NPM packages that we will need in the application. In your Terminal app, run the command below to install the needed packages:

1$ npm install --save laravel-echo pusher-js vue2-dropzone@^2.0.0
2    $ npm install

This will install Laravel Echo, the Pusher JS SDK and vue-dropzone. We will need these packages to handle realtime events later.

When the packages have been installed successfully, we can now start adding some HTML and JavaScript.

Open the ./routes/web.php file and let’s add some routes. Replace the contents of the file with the contents below:

1<?php
2
3    Route::post('/feedback/{image_url}/comment', 'PhotoController@comment');
4    Route::get('/feedback/{image_url}', 'PhotoController@show');
5    Route::post('/upload', 'PhotoController@upload');
6    Route::view('/', 'welcome');

In the code above, we have defined a few routes. The first one will be handling POSTed feedback. The second route will display the image that is to receive feedback. The third route will handle uploads and the final route will display the homepage.

Now open the ./resources/views/welcome.blade.php file and in there replace the contents with the following HTML code:

1<!doctype html>
2    <html lang="{{ app()->getLocale() }}">
3    <head>
4        <meta charset="utf-8">
5        <meta http-equiv="X-UA-Compatible" content="IE=edge">
6        <meta name="viewport" content="width=device-width, initial-scale=1">
7        <meta name="csrf-token" content="{{csrf_token()}}">
8        <title>Upload to get Feedback</title>
9        <link href="https://fonts.googleapis.com/css?family=Roboto:400,600" rel="stylesheet" type="text/css">
10        <link href="https://fonts.googleapis.com/icon?family=Material+Icons" rel="stylesheet">
11        <link rel="stylesheet" href="{{ asset('css/app.css') }}">
12    </head>
13    <body>
14        <div id="app">
15            <div class="flex-center position-ref full-height">
16                <div class="content">
17                    <uploadarea></uploadarea>
18                </div>
19            </div>
20        </div>
21        <script src="js/app.js"></script>
22    </body>
23    </html>

This is a simple HTML document, and if you look closely, you will see a reference to an uploadarea tag which does not exist in HTML but is a Vue component.

Open the ./resources/assets/sass/app.scss file and paste the following code below the import statements:

1html, body {
2        background-color: #fff;
3        color: #636b6f;
4        font-family: 'Roboto', sans-serif;
5        font-weight: 100;
6        height: 100vh;
7        margin: 0;
8    }
9    .full-height {
10        height: 100vh;
11    }
12    .flex-center {
13        align-items: center;
14        display: flex;
15        justify-content: center;
16    }
17    .position-ref {
18        position: relative;
19    }
20    .content {
21        text-align: center;
22    }
23    .m-b-md {
24        margin-bottom: 30px;
25    }
26    .dropzone.dz-clickable {
27        width: 100vw;
28        height: 100vh;
29        .dz-message {
30            span {
31                font-size: 19px;
32                font-weight: 600;
33            }
34        }
35    }
36    #canvas {
37        width: 90%;
38        margin: 0 auto;
39        img {
40            width: 100%;
41        }
42    }
43    .modal {
44      text-align: center;
45      padding: 0!important;
46      z-index: 9999;
47    }
48    .modal-backdrop.in {
49        opacity: 0.8;
50        filter: alpha(opacity=80);
51    }
52    .modal:before {
53      content: '';
54      display: inline-block;
55      height: 100%;
56      vertical-align: middle;
57      margin-right: -4px;
58    }
59    .modal-dialog {
60      display: inline-block;
61      text-align: left;
62      vertical-align: middle;
63    }
64    .image-hotspot {
65        position: relative;
66        > img {
67            display: block;
68            height: auto;
69            transition: all .5s;
70        }
71    }
72    .hotspot-point {
73        z-index: 2;
74        position: absolute;
75        display: block;
76        span {
77            position: relative;
78            display: flex;
79            justify-content: center;
80            align-items: center;
81            width: 1.8em;
82            height: 1.8em;
83            background: #cf00f1;
84            border-radius: 50%;
85            animation: pulse 3s ease infinite;
86            transition: background .3s;
87            box-shadow: 0 2px 10px rgba(#000, .2);
88            &:after {
89                content: attr(data-price);
90                position: absolute;
91                bottom: 130%;
92                left: 50%;
93                color: white;
94                text-shadow: 0 1px black;
95                font-weight: 600;
96                font-size: 1.2em;
97                opacity: 0;
98                transform: translate(-50%, 10%) scale(.5);
99                transition: all .25s;
100            }
101        }
102        svg {
103            opacity: 0;
104            color: #cf00f1;
105            font-size: 1.4em;
106            transition: opacity .2s;
107        }
108        &:before,
109        &:after  {
110            content: '';
111            position: absolute;
112            top: 0;
113            left: 0;
114            width: 100%;
115            height: 100%;
116            border-radius: 50%;
117            pointer-events: none;
118        }
119        &:before {
120            z-index: -1;
121            border: .15em solid rgba(#fff, .9);
122            opacity: 0;
123            transform: scale(2);
124            transition: transform .25s, opacity .2s;
125        }
126        &:after {
127            z-index: -2;
128            background:#fff;
129            animation: wave 3s linear infinite;
130        }
131        &:hover{
132            span {
133                animation: none;
134                background: #fff;
135                &:after {
136                    opacity: 1;
137                    transform: translate(-50%, 0) scale(1);
138                }
139            }
140            svg {
141                opacity: 1;
142            }
143            &:before {
144                opacity: 1;
145                transform: scale(1.5);
146                animation: borderColor 2s linear infinite;
147            }
148            &:after {
149                animation: none;
150                opacity: 0;
151            }
152        }
153    }
154    @-webkit-keyframes pulse{
155        0%, 100% { transform: scale(1); }
156        50% { transform: scale(1.1); }
157    }
158    @keyframes pulse{
159        0%, 100% { transform: scale(1); }
160        50% { transform: scale(1.1); }
161    }
162    .popover {
163        min-width: 250px;
164    }

Save the file and exit. Now let’s move on to creating our Vue components.

Using Vue to create the functionalities of our prototype feedback app

Open the ./resources/assets/js/app.js file and in there let us create our Vue component. In this file find the line below:

    Vue.component('example', require('./components/Example.vue'));

and replace it with:

1Vue.component('uploadarea', require('./components/UploadArea.vue'));
2    Vue.component('feedback', require('./components/FeedbackCanvas.vue'));

Now let us create our first Vue component. In the ./resources/assets/js/components directory create a file called UploadArea.vue. In the new file paste in the following:

1<template>
2        <dropzone ref="dropzone" id="dropzone"
3                url="/upload"
4                accepted-file-types="image/*"
5                v-on:vdropzone-success="showImagePage"
6                :headers="csrfHeader"
7                class="flex-center position-ref full-height">
8            <input type="hidden" name="csrf-token" :value="csrfToken">
9        </dropzone>
10    </template>
11
12    <script>
13    import Dropzone from 'vue2-dropzone';
14
15    const LARAVEL_TOKEN = document.head.querySelector('meta[name="csrf-token"]').content
16
17    export default {
18        components: { Dropzone },
19        data() {
20            return {
21                csrfToken: LARAVEL_TOKEN,
22                csrfHeader: { 'X-CSRF-TOKEN': LARAVEL_TOKEN }
23            }
24        },
25        methods: {
26            showImagePage: (file, response) => {
27                if (response.url) {
28                    return window.location = `/feedback/${response.url}`;
29                }
30            }
31        },
32        mounted () {
33            this.$refs.dropzone.dropzone.on('addedfile', function (file) {
34                if (this.files.length > 1) {
35                    this.removeFile(this.files[0])
36                }
37            })
38        }
39    }
40    </script>

In the template section, we are simply using the Vue dropzone package to define an area through which files can be uploaded. You can view the documentation here.

In the script section, we get the Laravel CSRF token from the header of the page and import the Dropzone component into our current Vue component.

In the methods property, we define a showImagePage method that just redirects the user to the image page after the image has been successfully uploaded. In the mounted method, we limit the dropzone file to allowing one file upload at a time.

Let us create our next Vue component. In the ./resources/assets/js/components directory create a new file called FeedbackCanvas.vue and paste in the following:

1<template>
2        <div class="feedback-area">
3            <div class="content">
4                <div id="canvas">
5                    <div class="image-hotspot" id="imghotspot">
6                        <transition-group name="hotspots">
7                          <a
8                            href="#"
9                            class="hotspot-point"
10                            v-for="(comment, index) in image.comments"
11                            v-bind:style="{ left: comment.position.left+'%', top: comment.position.top+'%' }"
12                            :key="index"
13                            @click.prevent
14                            data-placement="top"
15                            data-toggle="popover"
16                            :data-content="comment.comment"
17                          >
18                                <span>
19                                    <svg class="icon icon-close" viewBox="0 0 24 24">
20                                        <path d="M18.984 12.984h-6v6h-1.969v-6h-6v-1.969h6v-6h1.969v6h6v1.969z"></path>
21                                    </svg>
22                                </span>
23                          </a>
24                        </transition-group>
25                        <img ref="img" :src="'/storage/'+image.image" id="loaded-img"  @click="addCommentPoint">
26                    </div>
27                </div>
28            </div>
29            <add-comment-modal :image="image"></add-comment-modal>
30        </div>
31    </template>

We have defined the template for our Vue component. This is the area where the image will be displayed and where feedback will be given.

Let us break some parts of it down a little. The a tag has a bunch of attributes set to it. The v-for loops through each comment/feedback the image has.

The v-bind:style applies a style attribute to the a tag using the left and top properties of the comment/feedback. We also have the :data-content, data-toggle and data-placement which Bootstrap needs for its Popovers.

The img tag has the @click event that fires the function addCommentPoint when an area of the image is clicked. And finally, there’s a Vue component add-comment-modal that accepts a property image. This component will display a form so anyone can leave a comment.

In this same file, after the closing template tag, paste in the following code:

1<script>
2        let AddCommentModal = require('./AddCommentModal.vue')
3
4        export default {
5            props: ['photo'],
6            components: { AddCommentModal },
7            data() {
8                return { image: this.photo }
9            },
10            mounted() {
11                let vm = this
12
13                Echo.channel(`feedback-${this.photo.id}`)
14                    .listen('.added', (e) => {
15                        // Look through the comments and if no comment matches the
16                        // existing comments, add it
17                        if (vm.image.comments.filter((comment) => comment.id === e.comment.id).length === 0) {
18                            vm.image.comments.push(e.comment)
19                            $(document).ready(() => $('[data-toggle="popover"]').popover())
20                        }
21                    })
22            },
23            created() {
24                /** Activate popovers */
25                $(document).ready(() => $('[data-toggle="popover"]').popover());
26
27                /** Calculates the coordinates of the click point */
28                this.calculateClickCordinates = function (evt) {
29                    let rect = evt.target.getBoundingClientRect()
30                    return {
31                        left: Math.floor((evt.clientX - rect.left - 7) * 100 / this.$refs.img.width),
32                        top: Math.floor((evt.clientY - rect.top - 7) * 100 / this.$refs.img.height)
33                    }
34                }
35
36                /** Removes comments that have not been saved */
37                this.removeUnsavedComments = function () {
38                    var i = this.image.comments.length
39                    while (i--) {
40                        if ( ! this.image.comments[i]['id']) {
41                            this.image.comments.splice(i, 1)
42                        }
43                    }
44                }
45            },
46            methods: {
47                addCommentPoint: function(evt) {
48                    let vm       = this
49                    let position = vm.calculateClickCordinates(evt)
50                    let count    = this.image.comments.push({ position })
51
52                    // Show the modal and add a callback for when the modal is closed
53                    let modalElem = $("#add-modal")
54                    modalElem.data({"comment-index": count-1, "comment-position": position})
55                    modalElem.modal("show").on("hide.bs.modal", () => vm.removeUnsavedComments())
56                }
57            },
58        }
59    </script>

đź’ˇ The created and mounted methods are hooks that are called automatically during the creation of the Vue component. You can learn about Vue lifecycle here.

In the mounted method, we use Laravel Echo to listen to a Pusher channel. The channel name depends on the ID of the image currently being viewed. Each image will have broadcasts on a different channel based on the ID of the image.

When the added event is triggered on the feedback-$id channel, it looks through the available image.comments and, if the comment broadcasted does not exist, it adds it to the comments array.

In the create method, We activate Bootstrap popovers, define a function that calculates the coordinates of the click point, and we define a function that removes comments that have not been saved from the image.comments array.

Under methods we define the addCommentPoint method which calculates the click coordinates, and then launches a new Bootstrap modal which is going to be created in the add-comment-modal Vue component.

For Laravel Echo to work, we need to open the ./resources/assets/js/bootstrap.js file and add the code below at the bottom of the file:

1import Echo from 'laravel-echo'
2
3    window.Pusher = require('pusher-js');
4
5    window.Echo = new Echo({
6        broadcaster: 'pusher',
7        key: 'PUSHER_KEY',
8        encrypted: true,
9        cluster: 'PUSHER_CLUSTER'
10    });

You should replace PUSHER_KEY and PUSHER_CLUSTER with the key and cluster for your Pusher application.

Now lets create our next Vue component, AddCommentModal.vue. It is already referenced in our FeedbackCanvas.vue Vue component.

Create an AddCommentModal.vue file in the same directory as our other Vue components. In this file paste in the code below:

1<template>
2      <div id="add-modal" class="modal fade" role="dialog" data-backdrop="static" data-keyboard="false">
3          <div class="modal-dialog">
4              <div class="modal-content">
5                  <form method="post" :action="'/feedback/'+photo.url+'post'" @submit.prevent="submitFeedback()">
6                      <div class="modal-header">
7                          <h4 class="modal-title">Add Feedback</h4>
8                      </div>
9                      <div class="modal-body">
10                          <textarea name="feedback" id="feedback-provided" cols="10" rows="5" class="form-control" v-model="feedback" placeholder="Enter feedback..." required minlength="2" maxlength="2000"></textarea>
11                      </div>
12                      <div class="modal-footer">
13                          <button type="submit" class="btn btn-primary pull-right">Submit</button>
14                          <button type="button" class="btn btn-default pull-left" data-dismiss="modal">Cancel</button>
15                      </div>
16                  </form>
17              </div>
18        </div>
19      </div>
20    </template>
21
22    <script>
23    export default {
24        props: ['image'],
25        data() {
26            return { photo: this.image, feedback: null }
27        },
28        methods: {
29            submitFeedback: function () {
30                let vm = this
31                let modal = $('#add-modal')
32                let position = modal.data("comment-position")
33
34                // Create url and payload
35                let url = `/feedback/${this.photo.url}/comment`;
36                let payload = {comment: this.feedback, left: position.left, top: position.top}
37                axios.post(url, payload).then(response => {
38                    this.feedback = null
39                    modal.modal('hide')
40                    vm.photo.comments[modal.data('comment-index')] = response.data
41                    $(document).ready(() => $('[data-toggle="popover"]').popover())
42                })
43            }
44        }
45    }
46    </script>

In the template section, we have defined a typical Bootstrap modal. In the modal form, we have attached a call to submitFeedback() which is triggered when the form is submitted.

In the script section, we have defined the submitFeedback() method in the methods property of the Vue component. This function simply sends a comment to the backend for storage. If there is a favorable response from the API, the Bootstrap modal is hidden and the comment is appended to the image.comments array. The Bootstrap popover is then reloaded so it picks up the changes.

With that final change, we have defined all our Vue components. Open your terminal and run the command below to build your JS and CSS assets:

    $ npm run dev

Great! Now let’s build the backend.

Creating the Endpoints for our prototype feedback application

In your terminal, enter the command below:

    php artisan make:event FeedbackAdded

This will create an event class called FeedbackAdded. We will use this file to trigger events to Pusher when we add some feedback.This will make feedback appear in realtime to anyone looking at the image.

Open the PhotoController class and replace the contents with the code below:

1<?php
2    namespace App\Http\Controllers;
3
4    use App\Events\FeedbackAdded;
5    use App\{Photo, PhotoComment};
6
7    class PhotoController extends Controller
8    {
9        public function show($url)
10        {
11            $photo = Photo::whereUrl($url)->firstOrFail();
12
13            return view('image', compact('photo'));
14        }
15
16        public function comment(string $url)
17        {
18            $photo = Photo::whereUrl($url)->firstOrFail();
19
20            $data = request()->validate([
21                "comment" => "required|between:2,2000",
22                "left" => "required|numeric|between:0,100",
23                "top"  => "required|numeric|between:0,100",
24            ]);
25
26            $comment = $photo->comments()->save(new PhotoComment($data));
27
28            event(new FeedbackAdded($photo->id, $comment->toArray()));
29
30            return response()->json($comment);
31        }
32
33        public function upload()
34        {
35            request()->validate(['file' => 'required|image']);
36
37            $gibberish = md5(str_random().time());
38
39            $imgName = "{$gibberish}.".request('file')->getClientOriginalExtension();
40
41            request('file')->move(public_path('storage'), $imgName);
42
43            $photo = Photo::create(['image' => $imgName, 'url' => $gibberish]);
44
45            return response()->json($photo->toArray());
46        }
47    }

In the above, we have a show method which shows an image so people can leave feedback on it. Next, there is the comment method that saves a new comment on an image. The final method is the upload method that simply uploads an image to the server and saves it to the database.

Let us create the view for the show method. Create a new file in the ./resources/views directory called image.blade.php. In this file, paste the code below:

1<!doctype html>
2    <html lang="{{ app()->getLocale() }}">
3    <head>
4        <meta charset="utf-8">
5        <meta http-equiv="X-UA-Compatible" content="IE=edge">
6        <meta name="viewport" content="width=device-width, initial-scale=1">
7        <meta name="csrf-token" content="{{csrf_token()}}">
8        <title>Laravel</title>
9        <link href="https://fonts.googleapis.com/css?family=Roboto:400,600" rel="stylesheet" type="text/css">
10        <link href="https://fonts.googleapis.com/icon?family=Material+Icons" rel="stylesheet">
11        <link rel="stylesheet" href="{{ asset('css/app.css') }}">
12    </head>
13    <body>
14        <div id="app">
15            <feedback :photo='@json($photo)'></feedback>
16        </div>
17        <script src="{{asset('js/app.js')}}"></script>
18    </body>
19    </html>

In the above, the only thing that stands out is the feedback tag and it is basically in reference to the feedback Vue component we built earlier in the article. Every other thing is just basic Blade and HTML.

Now that we have created the view, we need to add the directory for uploads defined in the upload method. In your terminal, run the command below:

    $ php artisan storage:link

This command will create a symlink from the ./storage directory to the ./public/storage directory. If you look in the ./public directory you should see the symlink.

Now that we have created the backend to support our web application, we need to add Pusher to the backend so that the comments made are broadcasted and can be picked up by other people browsing the image.

Adding realtime functionality to the prototype feedback app using Pusher

Open your terminal and enter the command below to install the Pusher PHP SDK:

    $ composer require pusher/pusher-php-server "~3.0"

Open the .env file and scroll to the bottom and configure the Pusher keys as seen below:

1PUSHER_APP_ID="PUSHER_ID"
2    PUSHER_APP_KEY="PUSHER_KEY"
3    PUSHER_APP_SECRET="PUSHER_SECRET"

Also in the same file, look for the BROADCAST_DRIVER and change it from log to pusher.

Next, open the ./config/broadcasting.php and scroll to the pusher key. Replace the options key of that configuration to the code below:

1// ...
2    'options' => [
3        'cluster' => 'PUSHER_CLUSTER',
4        'encrypted' => true
5    ],
6    // ...

đź’ˇ Remember to replace the PUSHER_ID, PUSHER_KEY, PUSHER_SECRET and PUSHER_CLUSTER with the values from your Pusher application.

Now, open the FeedbackAdded class and replace the contents with the code below:

1<?php
2
3    namespace App\Events;
4
5    use Illuminate\Broadcasting\Channel;
6    use Illuminate\Queue\SerializesModels;
7    use Illuminate\Foundation\Events\Dispatchable;
8    use Illuminate\Broadcasting\InteractsWithSockets;
9    use Illuminate\Contracts\Broadcasting\ShouldBroadcast;
10
11    class FeedbackAdded implements ShouldBroadcast
12    {
13        use Dispatchable, InteractsWithSockets, SerializesModels;
14
15        public $comment;
16
17        public $photo_id;
18
19        public function __construct(int $photo_id, array $comment)
20        {
21            $this->comment = $comment;
22            $this->photo_id = $photo_id;
23        }
24
25        public function broadcastOn()
26        {
27            return new Channel("feedback-{$this->photo_id}");
28        }
29
30        public function broadcastAs()
31        {
32            return 'added';
33        }
34    }

In the class above, we define the comment object and the photo_id which will be used to compose the channel name in the broadcastOn method. We also define the broadcastAs method which will allow us to customise the name of the event being sent to Pusher.

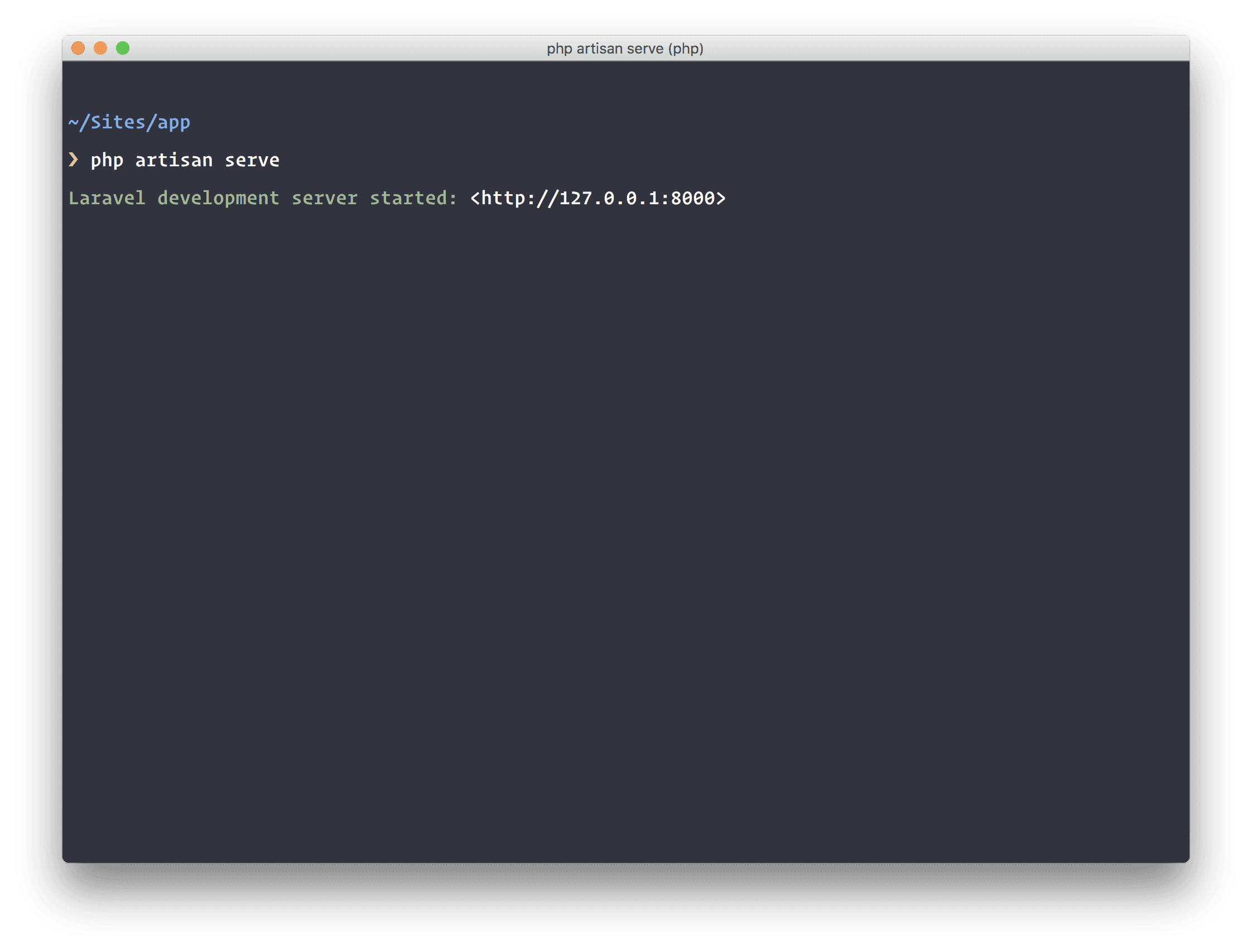

That’s all. Now, let’s run our application. In your terminal, run the code below:

    $ php artisan serve
design-feedback-vuejs-laravel-server

This should start a new PHP server and you can then use that to test your application. Go to the URL given and you should see your application.

Conclusion

In this article, we have successfully created a prototype application’s feedback feature that will allow designers share their designs with others and receive feedback on them.
